# Gallery Listing Elementor Widget Settings Overview

##

- Gallery Listing widget from The Plus Addons for Elementor showcases images in organized layouts.
- Freemium features include three source types: Normal, Repeater (Pro), and ACF Gallery (Pro).
- Four layout options available: Grid, Masonry, Metro, and Carousel (Pro), with additional styling options.
- PRO features enable Box Link, Category Filter, and Unique Carousel ID for enhanced gallery functionality.

Are you looking for an effective and user-friendly way to showcase your portfolio in a gallery on your Elementor website? An image gallery section not only helps grab visitors' attention but also gives them a glimpse of what you have to offer.

The Gallery Listing widget from The Plus Addons for Elementor allows you to showcase your images in a stunning and organised manner on your website.

[LIVE WIDGET LINK](https://theplusaddons.com/elementor-listing//#image-gallery-wgts?utm_source=tpae&utm_medium=docs&utm_campaign=text)

## Required Setup

- [Elementor FREE Plugin](https://wordpress.org/plugins/elementor/) installed & activated.

- You need to have [The Plus Addons for Elementor](https://wordpress.org/plugins/the-plus-addons-for-elementor-page-builder/) plugin installed and activated.

- Make sure the Gallery Listing widget is activated. To verify this, visit The Plus Addons → Widgets → and search for Gallery Listing and activate.

- This is a Freemium widget; to unlock the extra features, you need the [PRO version of The Plus Addons for Elementor](https://theplusaddons.com/pricing//?utm_source=tpae&utm_medium=docs&utm_campaign=text).

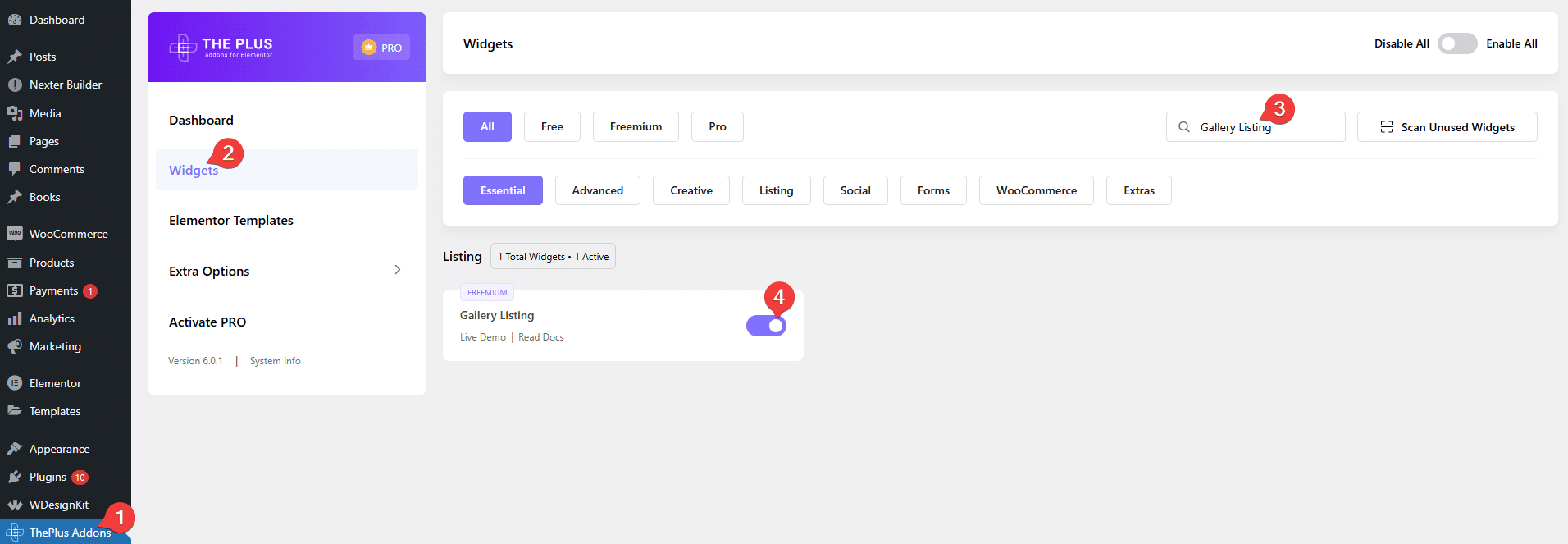

## How to Activate the Gallery Listing Widget?

Go to

- **The Plus Addons **→** Widgets **

- **Search **the widget name** **and** turn on the toggle.**

![](https://theplusaddons.com/wp-content/uploads/2023/06/gallery-listing.png)

## Key Features

- **Three Source Types **- You can choose from three source types: Normal, Repeater(Pro), and [ACF Gallery](https://theplusaddons.com/docs/create-elementor-gallery-with-acf-gallery/)(Pro).

- **Multiple Style Options **(Freemium) - You can choose from multiple styling options.

- **4 Layouts **- You can choose from four layout types: [Grid](https://theplusaddons.com/docs/create-image-gallery-in-grid-layout-in-elementor/), [Masonry](https://theplusaddons.com/docs/create-elementor-masonry-image-gallery/), [Metro](https://theplusaddons.com/docs/create-elementor-image-gallery-in-metro-layout/), and [Carousel](https://theplusaddons.com/docs/create-image-carousel-slider-in-elementor/) (Pro).

- **Box Link** (Pro) - You can easily [link gallery images to external links](https://theplusaddons.com/docs/add-custom-link-to-each-image-in-elementor-photo-gallery/).

- **Category Filter **(Pro) - You can easily [add category filters to image gallery](https://theplusaddons.com/docs/create-filterable-image-gallery-in-elementor/) (except for the carousel layout).

- **Unique Carousel ID **(Pro) - With the Unique Carousel ID, you can easily [connect and control the image carousel with the Carousel Remote](https://theplusaddons.com/docs/carousel-remote-sync-with-elementor-image-carousel/) widget.

## How to Create a Gallery Listing in Elementor?

To create a gallery listing, add the Gallery Listing widget on the page.

> *Note: By clicking on the **Import Presets** button, you can import a ready-made design and customize it as per your requirements.*

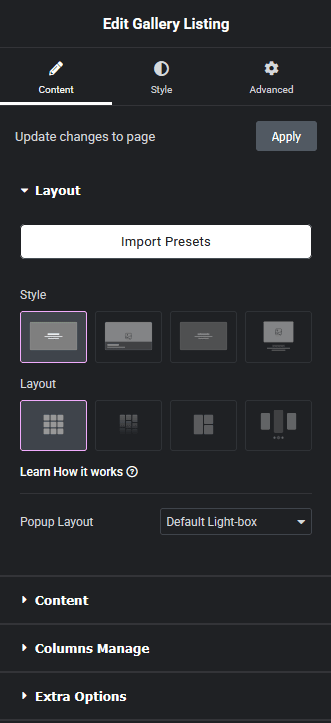

### Layout

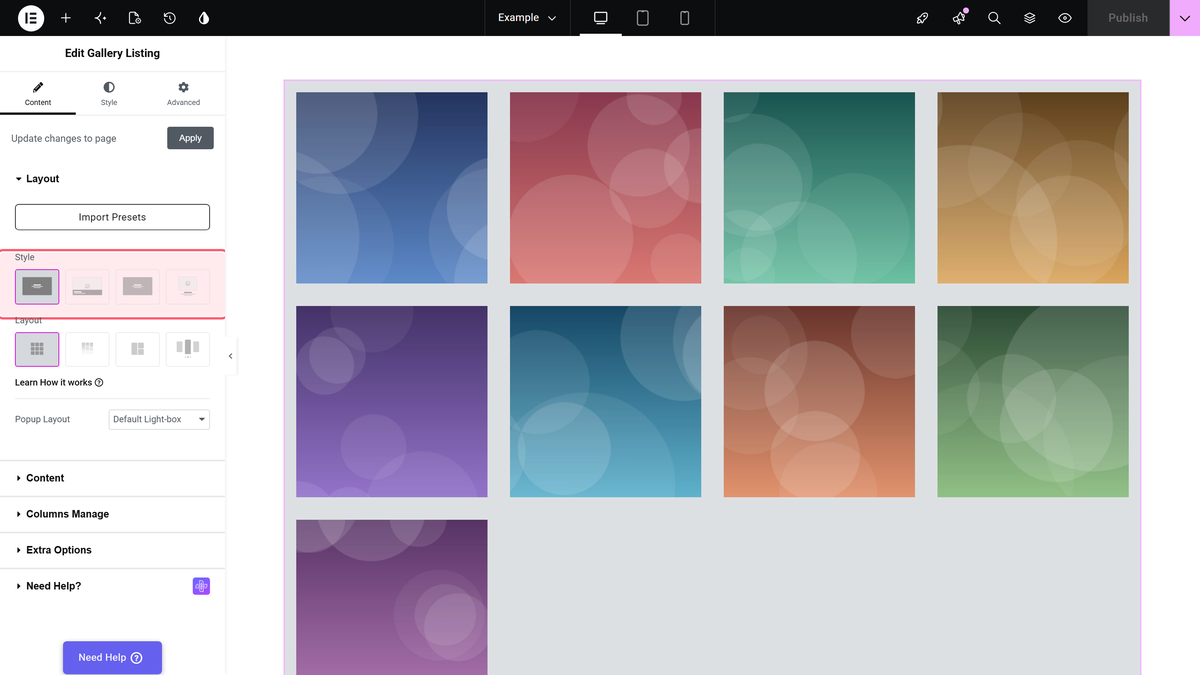

From the **Style** section under the **Layout** tab, you can select from different predefined styles.

Then, from the **Layout** section, you can select the layout of your gallery. You’ll find four options -

**Grid** - For creating a grid layout.

**Masonry** - For creating a masonry grid layout.

**Metro** - For creating a modern metro layout.

**Carousel** - For creating an image carousel slider.

Select the appropriate layout option that fits your needs.

![](https://theplusaddons.com/wp-content/uploads/2023/06/gallery-listing-layout-new.png)

In the **Popup Layout** dropdown, you can select the image popup type. You’ll find two options -

**Default Light-box** - With this option, you can view all the gallery images in a popup slider.

**No** -  With this option, you can only view individual images in a popup.

### Content

From the **Select Option** dropdown under the **Content **tab, you have to select the source of the listing. Here you’ll find three options -

**Normal** - With this option, you can directly add images to the gallery

**Repeater** - With this option, you can add additional information like title, caption, category, custom URL, and more while [adding images to the repeater gallery](https://theplusaddons.com/docs/create-image-gallery-with-repeater-in-elementor/).

**ACF Gallery** - With this option, you can [create an Elementor gallery using the ACF Gallery](https://theplusaddons.com/docs/create-elementor-gallery-with-acf-gallery/) custom field.

Here we’ll select the **Normal** option.

From the **Add Images** section, you can add images to the gallery from the media library.

### Columns Manage

From the **Columns Manage** tab, you can manage the number of columns of your gallery listing on desktop, tablet, and mobile separately.

You can also manage the column gap from here.

For the **Metro **layout, you can select the number of columns for desktop and tablet only; you can also select different styles for each device separately.

### Extra Options

Then, in the **Extra Options** tab, you’ll find some additional options.

**Display Title** - From here, you can show or hide the image title. You can also set different HTML tags for the title.

> *Note: For the Normal and ACF Gallery types image name will show as the title.*

**Display Image Size** - From here, you can select different image sizes.

> *Note: For ****Carousel**** layout, you’ll get ****Featured Image Type**** option to adjust the image size.*

**Display Excerpt/Content** - From here, you can show or hide the image caption in the gallery.

**Box Link** - From here, you can [add custom link to Elementor gallery images](https://theplusaddons.com/docs/add-custom-link-to-each-image-in-elementor-photo-gallery/) for the Repeater type gallery only.

**Category Wise Filter** - In the Repeater type gallery, you can add a category filter to [create a filterable Elementor gallery](https://theplusaddons.com/docs/create-filterable-image-gallery-in-elementor/).

> *Note: Category Wise Filter option is not available in the ****Carousel**** layout.*

## How to Style Team Member Listing Widget in Elementor?

To style the Gallery Listing widget, you’ll find all the styling options under the **Style** tab.

**Popup Icon** - From here, you can enable or disable the icon on the image. You can also set the icon or image for the gallery images; besides that, you can manage icon size, colour, etc.

![gallery listing style](https://theplusaddons.com/wp-content/uploads/2023/06/gallery-listing-style.png)

**Extra Icon** - You’ll see this option for the Repeater type gallery. From here, you can manage the extra icon size, colour, top, and bottom space.

**Title** - From here, you can manage the gallery image title typography, colour, top and bottom space.

**Excerpt/Content** - From here, you can manage the gallery image caption typography, colour, top and bottom space.

**Content Background** - From here, you can manage the image content background for normal and hover states.

**Feature Image** - From here, you can manage the image overlay background for normal and hover states.

**Box Loop Background Style** - From here, you can add a border and box shadow to each item in the listing.

**Carousel Options** - This option will be visible when you use the **Carousel** layout. Here you’ll find many options to control the carousel.

- **Unique Carousel ID** - With the Unique Carousel ID, you can easily connect and [control the image carousel with the Carousel Remote ](https://theplusaddons.com/docs//carousel-remote-sync-with-elementor-image-carousel/)widget.

- **Slider Mode** - From here, you can choose your slider orientation, Horizontal or Vertical.

- **Slide Direction** - From here, you can choose the slider's slide direction, Right to Left or Left to Right.

- **Slide Speed** - Control your slide transition speed from here.

*Now you’ll find various device-dependent options.*

- **Columns **- You can set the number of columns for the slide for desktop, tablet, and mobile separately.

- **Next Previous** - You can set the behaviour of your next/previous slide movement from here. You can move one column at a time or all visible columns (depending on the number of columns set in the **Columns** dropdown).

- **Slide Padding** - From here, you can adjust the padding of your slider.

- **Draggable** - Make your carousel draggable or non-draggable from here.

- **Multi Drag** - With this option, you can allow users to drag multiple slides at once.

- **Infinite Mode** - From here, you can turn your carousel into an infinite loop slider.

- **Pause On Hover** - Allow the users to pause the slider on mouse hover.

- **Adaptive Height** -  If you have slides with uneven height, with this option, the carousel navigation will adjust its position automatically according to the height of the slide.

- **Animation Type** - From here, you can choose the animation type for your slider.

- **Autoplay** - Make your carousel slider autoplay from here and adjust its speed as well.

- **Show Dots** - From here, you can add dots, slider navigation, and you can style them as well.

- **Show Arrow** - You can also add arrow navigation for your carousel slider and style it.

- **Center Mode** - From here, you can highlight the center slide by adding padding, scale effect, or opacity.

- **Number Of Rows** - From here, you can set the number of rows for your slider.

**Post Not Found Options** - From here, you can style the “Please select a multiple images gallery” message. You can manage the message typography, colour, background, border, etc.

**Extra Options** - From here, you can add unique styles to your gallery items.

- **Tilt 3D Parallax** - From here, you can [add a 3d tilt effect on mouse hover](https://theplusaddons.com/docs/add-3d-tilt-effect-to-elementor-gallery-listing/).

- **Mouse Move Parallax** - You can [add a mouse move parallax effect on mouse hover](https://theplusaddons.com/docs//add-parallax-effect-to-elementor-gallery-listing/).

**Messy Columns** - You can make a unique column alignment from here. Turn on the **Messy Columns** toggle you’ll get options to move columns up and down up to 6 columns individually for different devices.

**On Scroll View Animation** -  This is our global extension available for all our widgets, which adds scrolling animation as the widget comes into the viewport.

[Learn more about On Scroll View Animation](https://theplusaddons.com/docs//on-scroll-view-animation/)

Advanced options remain common for all our widgets; you can explore all their options from here.

[View Advanced tab tutorial.](https://docs.posimyth.com/tpae/advanced-tab/)
