# How To Add Lottie Animation In Infobox Elementor?

##

- The Plus Addons for Elementor Pro añade el tipo de icono Lottie al widget Info Box, mientras que en el plugin gratuito la opción no aparece en el desplegable Select Icon.
- El archivo Lottie funciona como una URL .json pública, y el widget no ofrece campo de subida, así que el archivo debe estar alojado en línea antes de usarlo.
- Loop Animation repite la animación continuamente y Hover Animation la reproduce solo mientras el puntero está sobre la caja; por defecto, Hover Animation está en Off.
- Style > Lottie permite ajustar width, height y playback speed, y el tamaño inicial es de aproximadamente 50 por 50 píxeles, por lo que la animación puede parecer que no carga.

A small looping animation catches the eye in a way a flat icon cannot, and a Lottie file does it in a few kilobytes of JSON rather than a video.

The **Info Box** widget can use one in place of its icon, so your feature cards can move without slowing the page down.

*To check the complete feature overview documentation of The Plus Addons for Elementor Info Box widget, [click here](https://theplusaddons.com/docs/info-box-widget-settings-overview/).*

***Requirement - This widget is a part of The Plus Addons for Elementor, make sure it's installed & activated to enjoy all its powers.***

[LIVE WIDGET LINK](https://theplusaddons.com/elementor-widget/info-box/?utm_source=tpae&utm_medium=docs&utm_campaign=text)

## Before You Start

- **Edition:** **Pro** — the Lottie icon type needs The Plus Addons for Elementor Pro. In the free plugin the option is not in the dropdown at all.- **Widget to enable:** Info Box, switched on under **The Plus Addons > Widgets**. In the Elementor panel it appears under **Plus Essential**.- **You need a Lottie JSON URL.** Either host the `.json` file yourself or copy an asset link from a service such as LottieFiles.

## Get the Animation URL

- Open your Lottie source and choose the animation you want.- Look for the option to share or embed it, and copy the **asset link** — the URL that ends in `.json`.- Check the URL opens in a browser and shows JSON. If it asks you to log in or returns an error, it will not work in the widget.

![Copying the asset link for a Lottie animation from the LottieFiles interface](https://theplusaddons.com/wp-content/uploads/2024/03/Lottie-Animation-URL.gif)

## Use It in the Info Box

- Add the **Info Box** widget and set **Info Box Style**, **Title Of Info Box** and **Description** as usual.- Set **Select Icon** to **Lottie**.- Paste your URL into the **Lottie URL** field that appears.

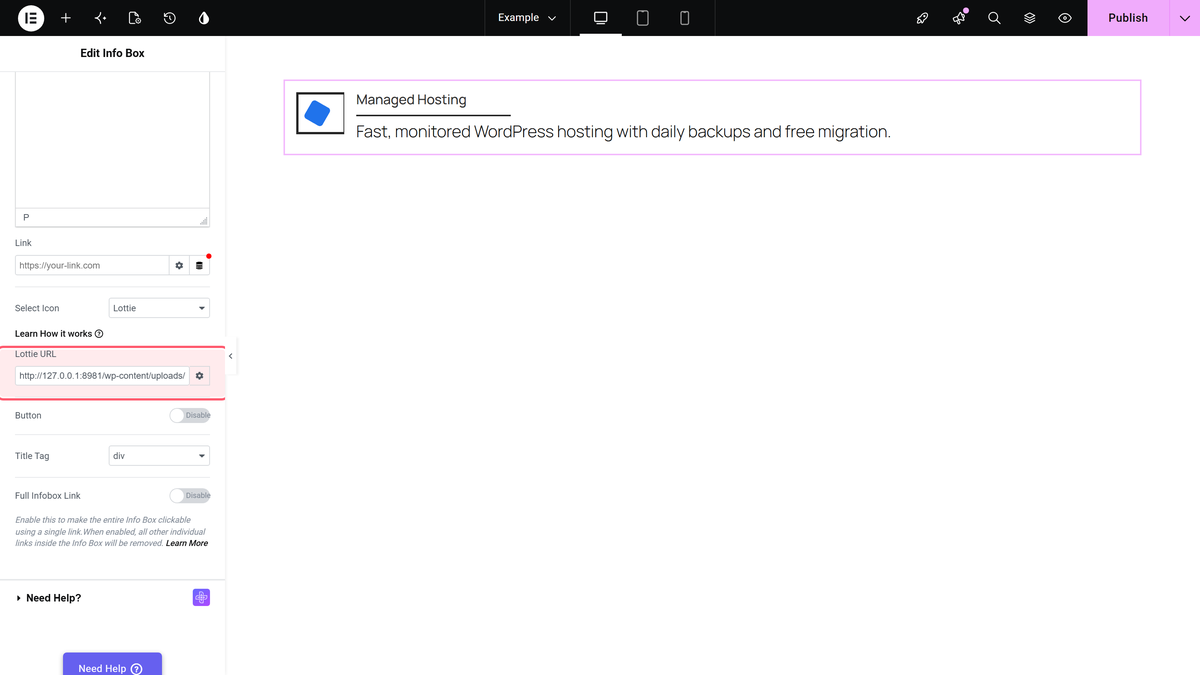

![The Select Icon dropdown set to Lottie and the Lottie URL field filled in, with the animation on the canvas](https://theplusaddons.com/wp-content/uploads/2026/09/infobox-lottie-url.webp)

## Control How It Plays

| Setting | What it does | Default |
| ------- | ------------ | ------- |
| **Loop Animation** | Repeats the animation continuously. | **On** |
| **Hover Animation** | Plays only while the pointer is over the box, instead of on its own. | **Off** |

The **Style** tab gains a **Lottie** section where you set the animation's **width**, **height** and playback **speed**.

> *Set the size early. The player starts at roughly **50 by 50 pixels**, which is smaller than a typical icon and is the usual reason people think the animation has failed to load.*

![A Lottie animation playing in place of the icon in a finished info box on the front end](https://theplusaddons.com/wp-content/uploads/2026/09/infobox-result-lottie.webp)

## In the Carousel Layout

A carousel has **two** **Select Icon** dropdowns. The one in the main **Content** section sets the icon type for every box at once; the one inside a **Carousel InfoBox** row sets it for that box only. Set whichever matches what you want, then fill in the matching **Lottie URL**.

## How It Behaves

- The animation is fetched by the visitor's browser from the URL you paste, so the file must stay publicly reachable.- With **Loop Animation** on, it starts as soon as the page loads and keeps going.- With **Hover Animation** on, it waits for the pointer, which is quieter on a page with several animated cards.- It plays on the published page. The editor canvas shows the animation too, but judge size and speed on the real page.

## Limitations

- **A broken URL fails silently.** If the link 404s, returns a 403, or is not valid Lottie JSON, the player is still added to the page but nothing is drawn and no error appears anywhere — not in the editor and not in the browser console. An empty gap where the icon should be is the only clue.- **The default size is very small.** At about 50 by 50 pixels the animation is easy to miss next to a normal icon.- **There is no upload field.** The widget takes a URL only, so a `.json` file on your own machine has to be hosted somewhere first.- **Lottie is not in the free plugin at all.** The option does not appear in the **Select Icon** dropdown, so there is nothing to switch on without Pro.

## Troubleshooting

### There is a blank space where the animation should be

Open the **Lottie URL** in a browser tab. If it does not return raw JSON — because it needs a login, has expired, or is a share page rather than an asset link — the widget cannot use it.

### The animation is tiny

That is the default size. Open **Style > Lottie** and raise the width and height.

### Lottie is not in the Select Icon dropdown

The free plugin does not offer it. The option appears only once The Plus Addons for Elementor Pro is active.

### It plays once and stops

Check **Loop Animation** is on, and that **Hover Animation** is off unless you want it to wait for the pointer.

## Related Docs

- [Info Box Widget: Settings Overview](https://theplusaddons.com/docs/info-box-widget-settings-overview/)- [How To Create an Elementor Image Box?](https://theplusaddons.com/docs/create-elementor-image-box/)- [How to Create an Infobox/Service Box Carousel in Elementor?](https://theplusaddons.com/docs/create-an-infobox-service-box-carousel-in-elementor/)

## Frequently Asked Questions

**Q: What do I need before adding a Lottie animation to an Info Box in Elementor?**
A: The setup depends on three things: The Plus Addons for Elementor Pro, the Info Box widget being enabled under The Plus Addons > Widgets, and a public Lottie JSON URL. The page says the free plugin does not show the Lottie option in the Select Icon dropdown at all. A practical check is to open the URL in a browser first and confirm it returns raw JSON, not a login page or error.

**Q: Why is my Lottie animation not showing in the Info Box?**
A: A blank gap usually means the URL is broken, private, or not valid Lottie JSON. The widget fetches the file from the visitor’s browser, so a 404, 403, expired link, or share page will fail silently. The page also notes that no error appears in the editor or browser console, so the fastest test is opening the URL directly and confirming it ends in .json and displays JSON.

**Q: How do I make a Lottie animation loop instead of playing once?**
A: Loop Animation controls that behavior. When it is on, the animation repeats continuously as soon as the page loads. When Hover Animation is on instead, it waits for pointer hover and does not run on its own. That matters if you want motion that stays visible on feature cards without forcing users to hover over each box.

**Q: Why does my Lottie animation look tiny in the Info Box?**
A: The default player size is about 50 by 50 pixels, which is smaller than most icons and easy to miss next to normal content. The fix is in Style > Lottie, where width and height can be raised along with playback speed. Setting size early helps because many people think the file failed when it is really just rendering at its default small size.

**Q: How does Lottie work in an Info Box carousel?**
A: A carousel has two Select Icon dropdowns, and they serve different scopes. The main Content section sets the icon type for every box at once, while the Carousel InfoBox row dropdown applies only to that specific box. That distinction matters if you want one animated card to differ from the rest without changing the whole carousel.

**Q: Is there a way to upload a Lottie file directly into the widget?**
A: The widget takes a URL only, so there is no upload field for a local .json file. If the file sits on your machine, it has to be hosted somewhere public first before The Plus Addons for Elementor can use it inside Info Box. That also explains why publicly reachable files are important: the browser has to fetch them at runtime.
