How to Create WooCommerce Product Size Filter in Elementor? (Button Filter)

Updated on September 14, 2023 by Ananda
Table Of Content

One important feature that can enhance your online store’s usability is a product size filter. With a size filter, customers can easily find products that fit their specific needs, resulting in a smoother shopping experience.

With the WP Search Filters widget from The Plus Addons for Elementor, you can easily add button filters for WooCommerce products.

To check the complete feature overview documentation of The Plus Addons for Elementor WP Search Filters widget, click here.

Requirement  – This widget is a part of The Plus Addons for Elementor, make sure its installed & activated to enjoy all its powers.

To do this, make sure you’ve added some products to your WooCommerce store, then you have to create a button attribute and assign them to some products.

Enable WooCommerce Swatches

But first, you have to enable The Plus Addons for Elementor swatches option. To do this –

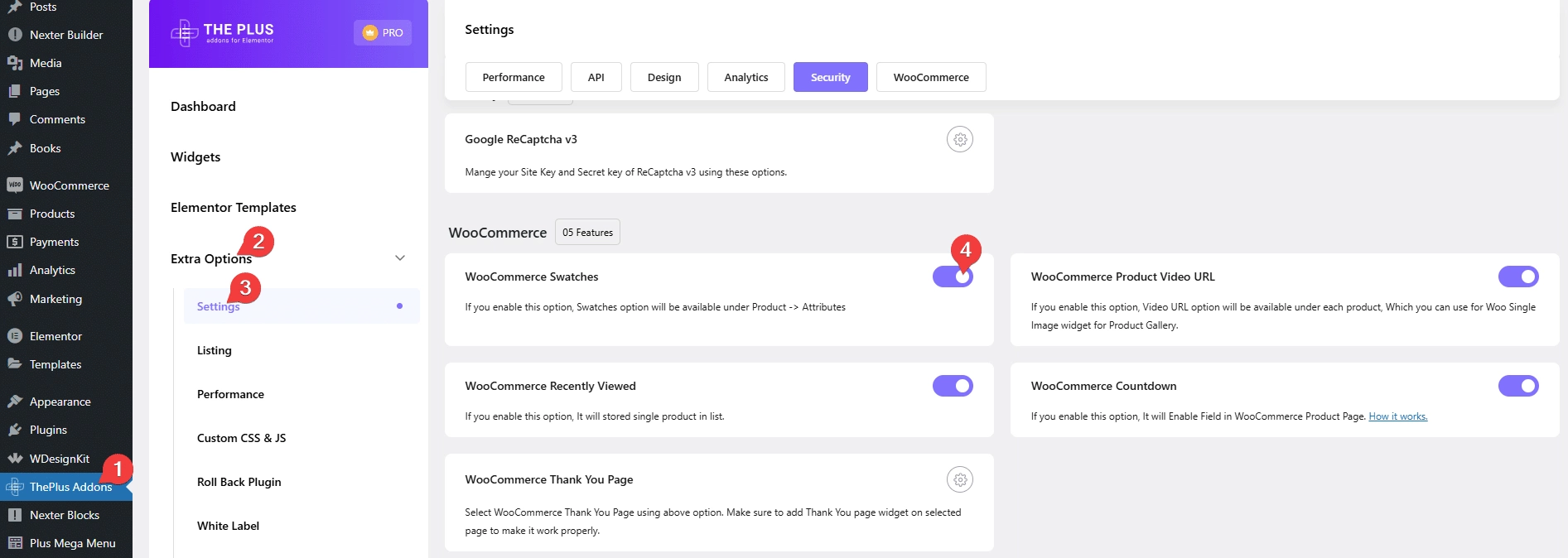

1. From the Dashboard, go to The Plus Settings > Extra Options.

2. Scroll down to the WooCommerce Swatches section and enable it, then click the Save button.

Enable woocommerce swatches

Create a Button Attribute

1. To create a button attribute, from the Dashboard, go to Products > Attributes.

2. On the next page, add a name in the Name field and select Button from the Type dropdown then click on the Add attribute button.

Woocommerce add button attribute

3. Once the attribute is created, click on the Configure terms link.

4. On the next page, add a name in the Name field and in the Button field, then click on the Add new Size button.

Woocommerce add button attribute item

Following this process, you can add multiple items.

Assign Button Attribute

1. Edit a product.

2. Scroll down to the Product Data section and click on Attributes

3. Click on the dropdown and select your button attribute option.

4. In the Value(s) field add the values, once done click the Save attributes button.

5. Then update the page.

Woocommerce product add button attribute

Use the WP Search Filters Widget

You have to use the WP Search Filters widget with the Product Listing widget.

Note: Make sure you’ve enabled both WP Search Filters and Product Listing widgets from The Plus Settings.

Place the widgets in your desired location on the page or template, then follow the steps –

1. In the Product Listing widget, select Search List from the Product Listing Types dropdown.

Product listing search list

2. Then select the appropriate style and layout.

3. In the WP Search Filters widget, open the Category item under the Filter Area.

4. From the Filter Type dropdown, select Woo Filter

5. Then select Button from the Select Source dropdown.

6. Select Taxonomy from the Select Type dropdown.

7. After that select Product Attribute from the Select Taxonomy dropdown.

8. Finally from the Select Attributes dropdown, select your button attribute.

Note: The list will only show global attributes, not any custom attributes.

Wp search filters product attributes button

Now you’ll be able to see a size filter that you can use to filter products by size.

From the Show Count toggle, you can show the product count.

Then from the Tooltip toggle, you can show a tooltip on hover with the product count.

You can also manage item columns for desktop, tablet and mobile.

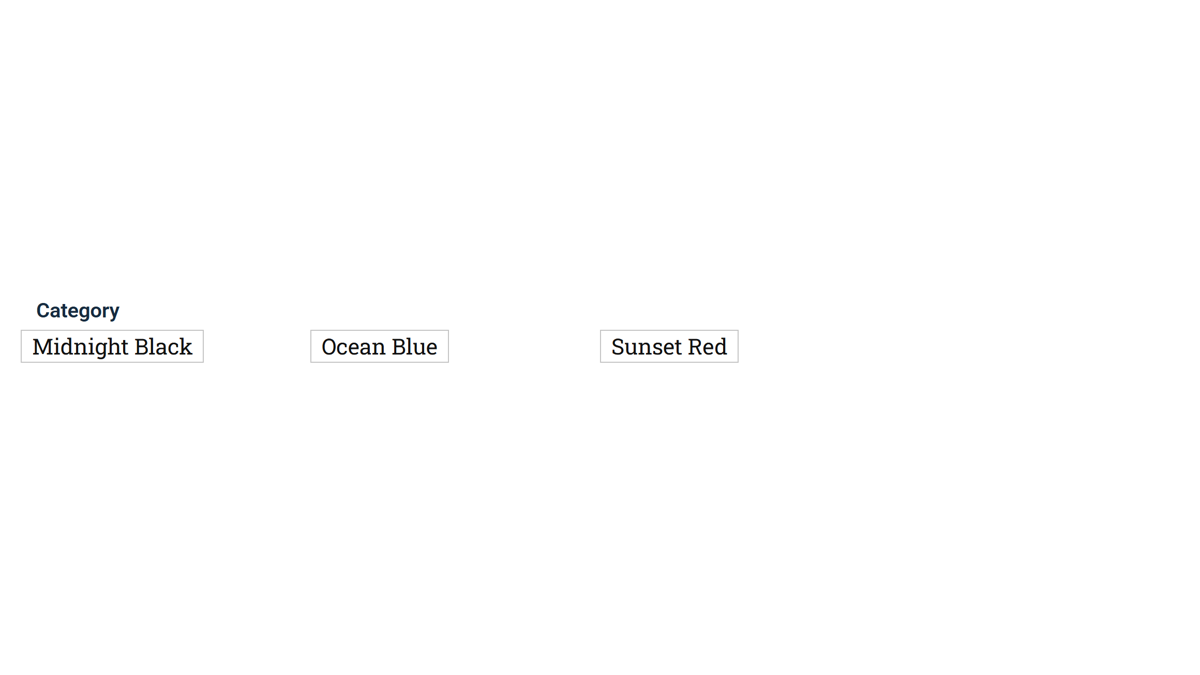

Wp search filters product attributes button demo

Also, read How to Create WooCommerce Color Swatches Filter in Elementor.
